Memory modification

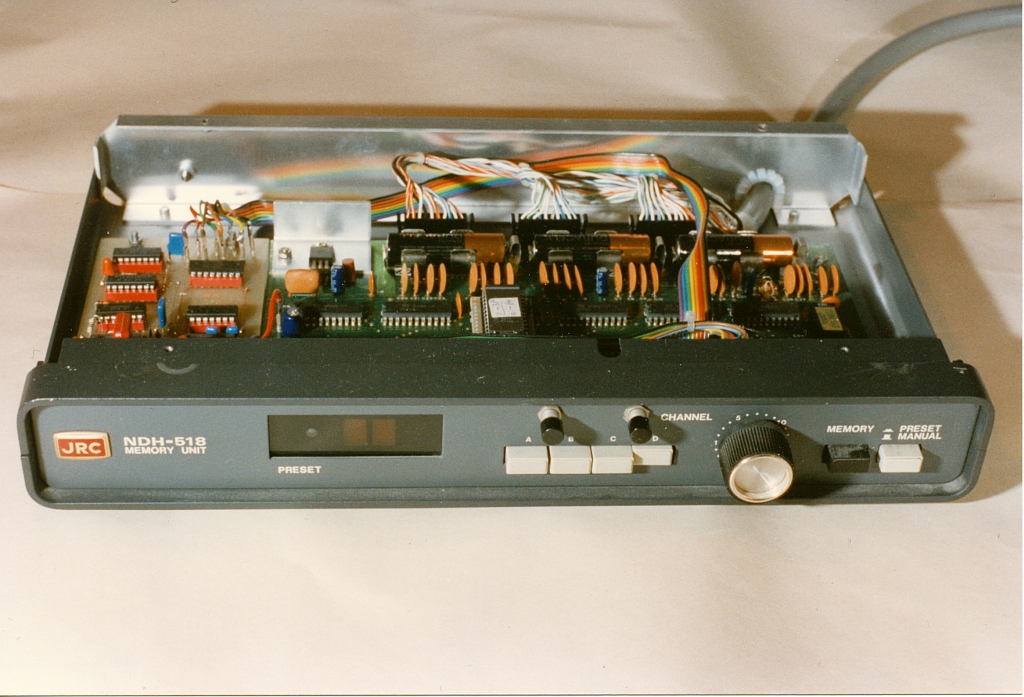

The first build option for the NDH-518.

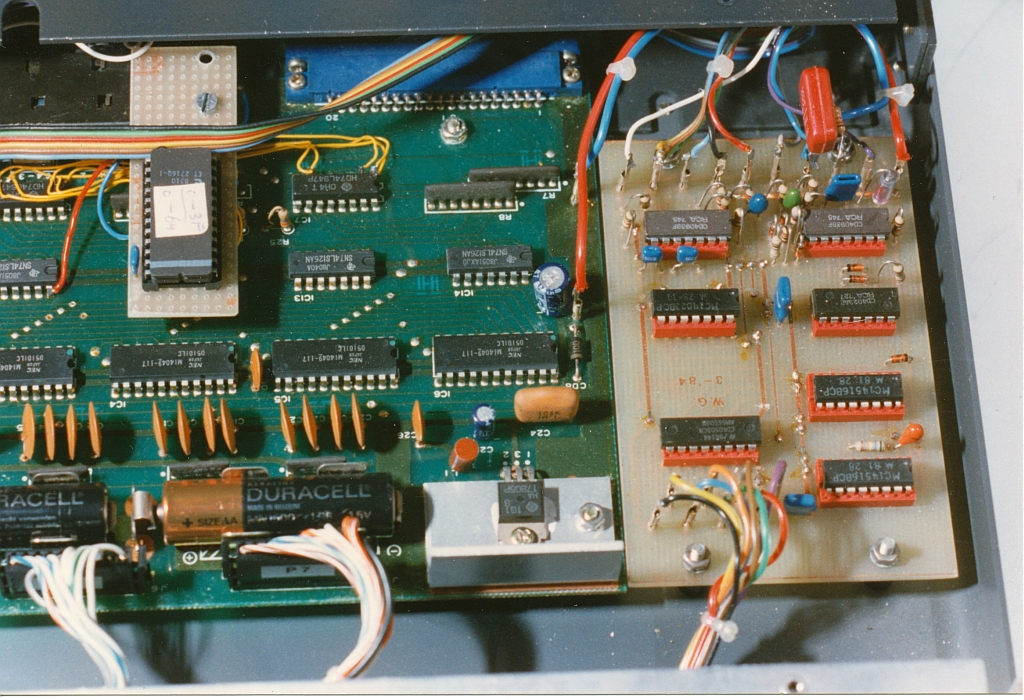

With UP/DOWN counter and home-made opto encoder control

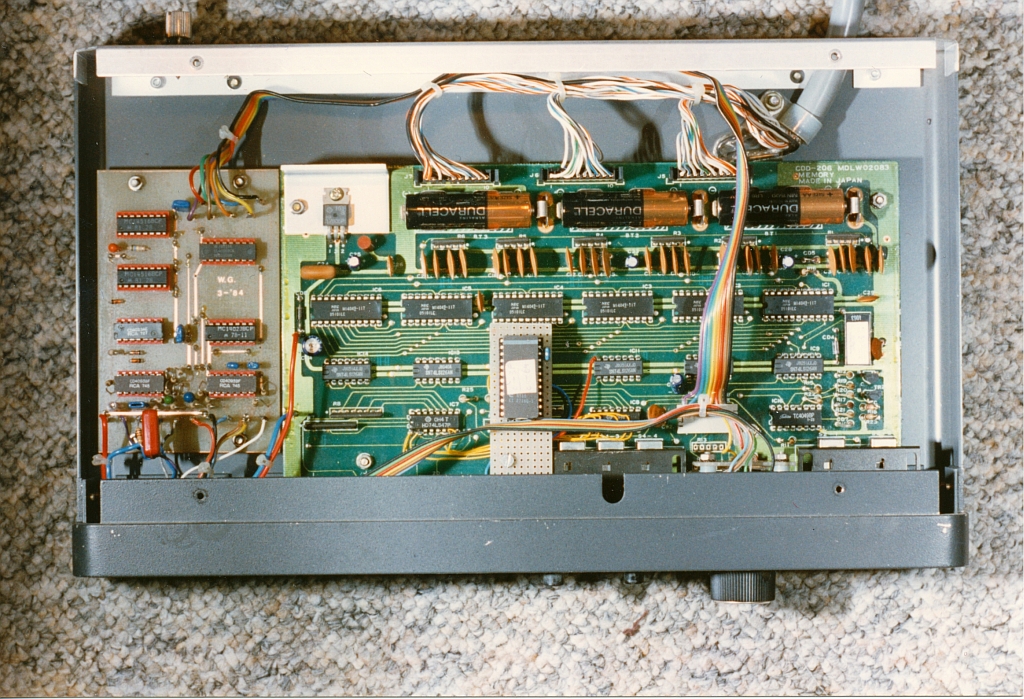

( with older original 1984 hand-drawn version of the up/down PCB )

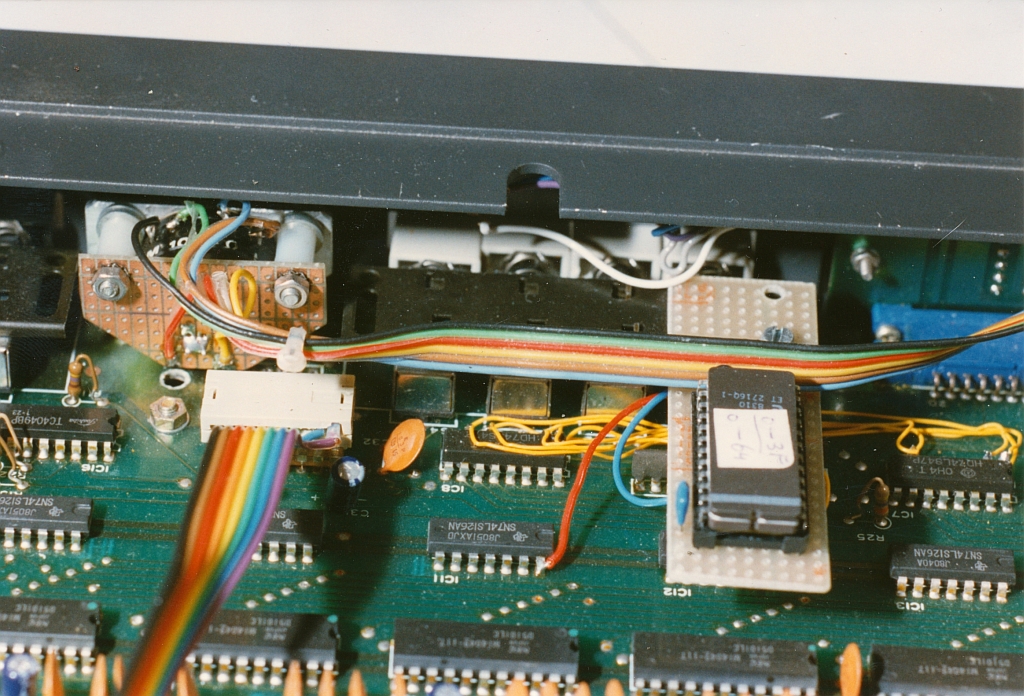

 + eprom BIN-BCD decoder in a 27C32 EPROM for 4 x 64 channels display.
I didn't had the GAL stuff yet.
